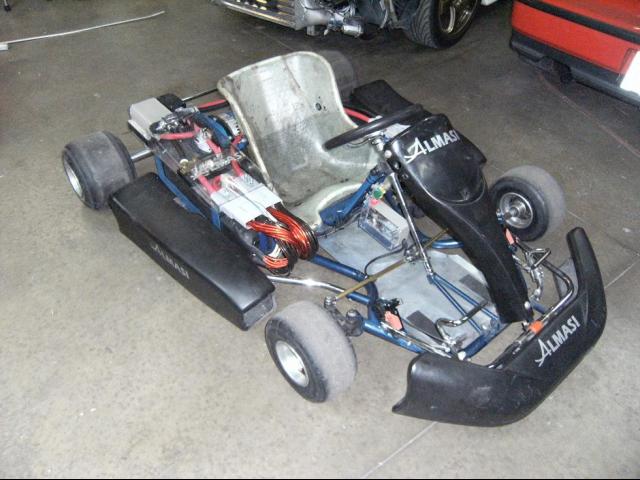

BRM 2005 Racing Cart

Owner	Robin Almasi
Owners Other EVs	Almasi / Schwinn Stealth 15 000 Watt 2006 Specialized Crystalyte A123
Location	Longueuil- Quebec Canada ^map
Email

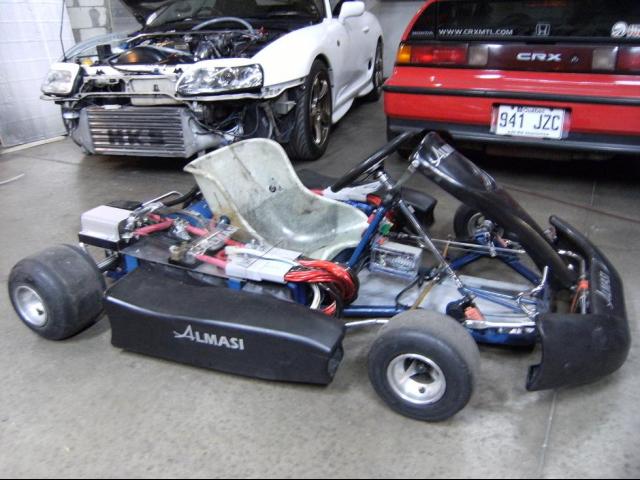

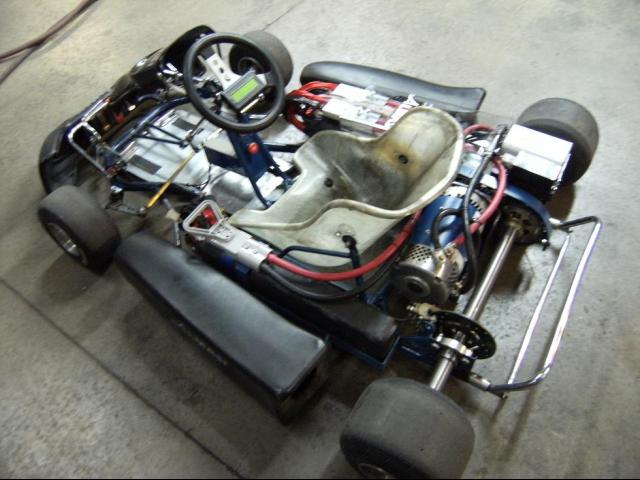

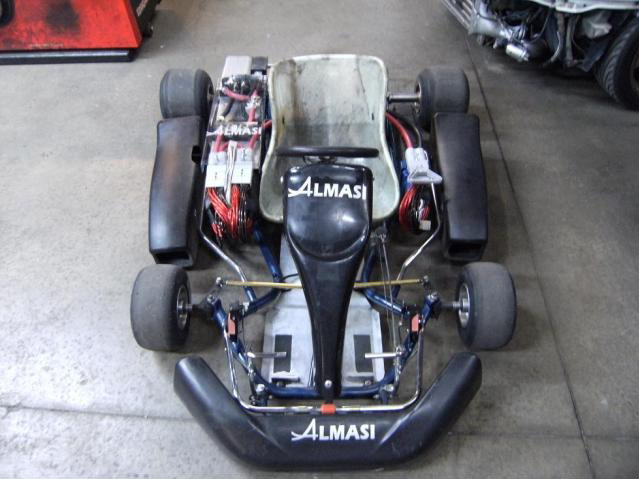

Vehicle	2005 BRM 125cc Racing Kart Originally a BRM with Rotax 125cc engine- I sold the ICE engine and started the swap slowly over a year

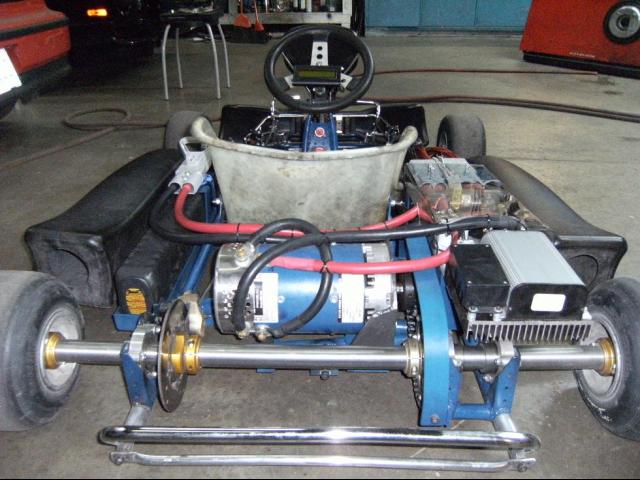

Motor	D&D Motor Systems- Inc. ES15A Series Wound DC 72 Volt motor rated 10 HP
Drivetrain	#40 Chain and sprocket (40 on the axle and 30 or 40 on the motor )

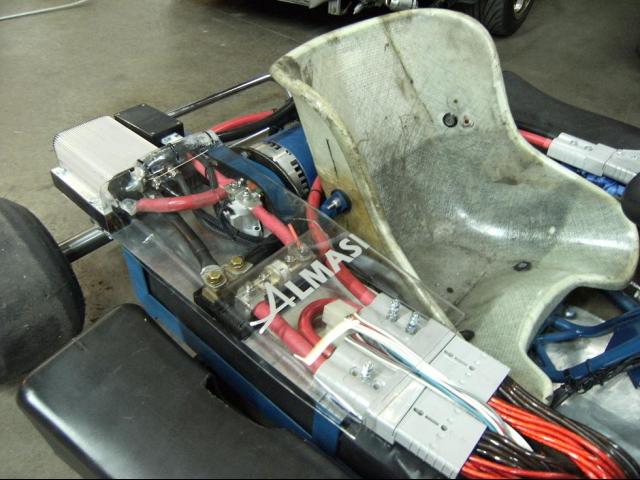

Controller	Kelly KDH09500A 96 Volt (120MAX) 500 Amp 10 second- 400 Amp 5 minutes- will most probably be exchanged for a KDH12800 (800 Amp 120 Volt)

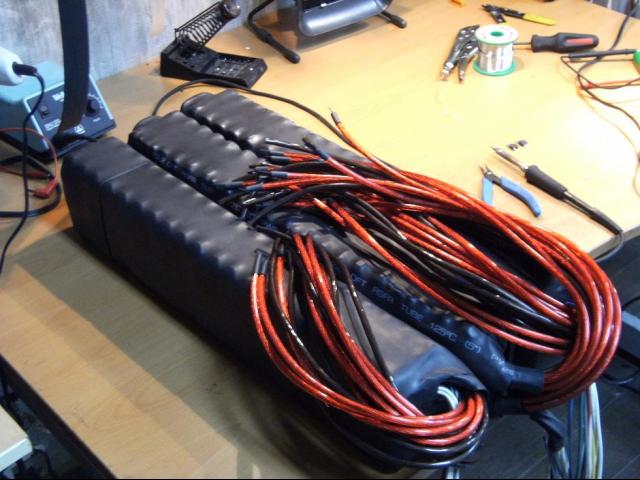

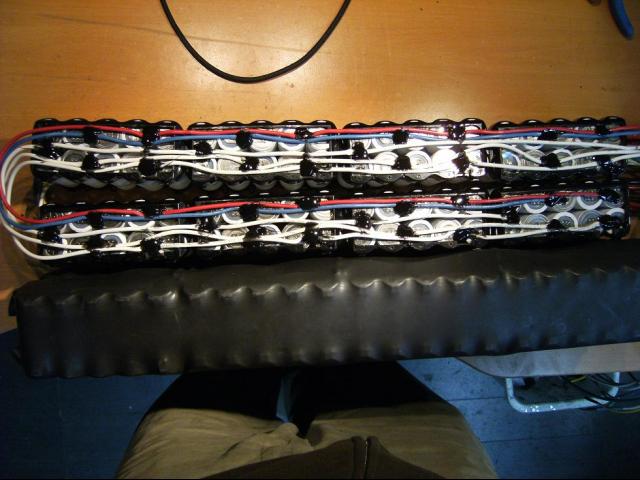

Batteries	280 A123 Systems M1- 3.30 Volt- LiFe PO4 cell 30 C continious- 60 C for 30 second. The pack is divided in 3 pack of 80 cell 10S8P for a total of 30S8P- this will probably be upgraded to 40S8P this summer!
System Voltage	99 Volts

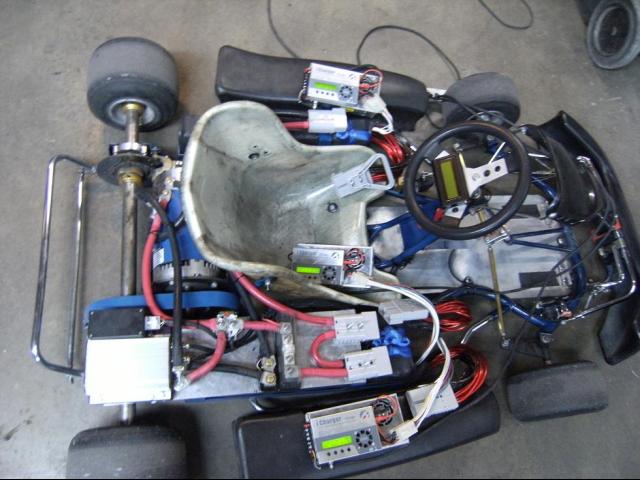

Charger	ICharger 1010B+ (3 of them) with MeanWell Power su 10 Amp charging current - 300mA balancing- it take 2 Hours from empty to full balanced charge.
Heater	you dont need one when you get soo much adrenaline rush!
DC/DC Converter	AC/DC LCD switching powersupply I took out the AC front end- and left only the DC to DC parts- good from 60 Volt up to 300 Volt DC!
Instrumentation	Cycle Analyst large screen version in custom enclosure. (very nice unit- I recommend it to everyone)
Top Speed	100 MPH (160 KPH) With the 40 tooth sprocket on the motor- I expect 120 MPH with more A123 cell (80 more) to get to 132 volt nominal.
Acceleration	Very quick...but will be quicker with a Kelly KDH12800...I will upgrade very soon!
Range	10 Miles (16 Kilometers) about 20 minutes racing!
Seating Capacity	1 adult
Curb Weight	220 Pounds (99 Kilograms)
Tires	Bridgestone racing tires
Conversion Time	200 Hours +
Conversion Cost	8000$ Canadian
I love this Kart- noise free- except the tires!
