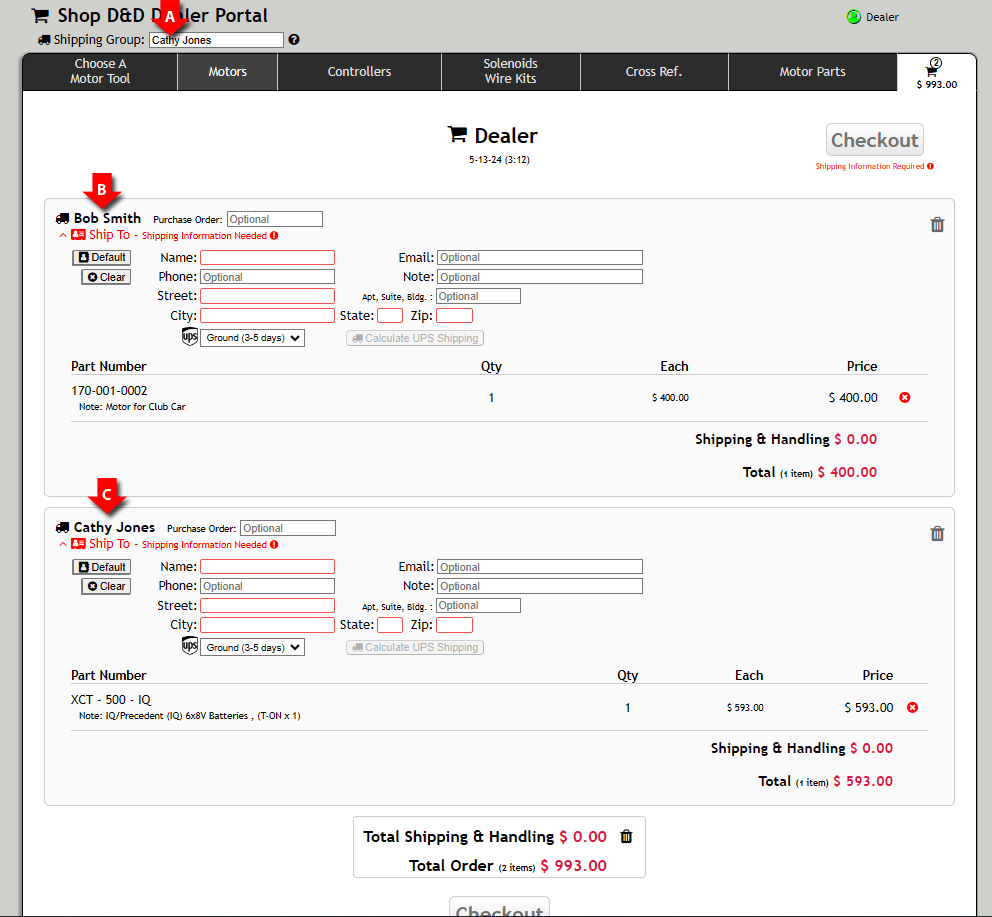

What are Shipping Groups?

Shipping Groups A (Optional) are mostly used for Drop-Shipments. Enter the Name or some identifying label for the shipment into the Shipping Group field. This will keep all items together for that group. This feature allows you to enter orders containing multiple drop-shipments. Each group gets procesed as a seperate charge and processed as an individual order at checkout. Multiple drop shipments with 1 Single Checkout click!

For example, Enter the Name of a customer (ie. Bob Smith) in the Shipping group field. Now add items to your cart that you intend to have shipped to Bob Smith. And you also have another customer (ie. Cathy Jones) to buy different items for. Now clear the Shipping Group field and enter Cathey Jones. And add all of the items for their vehicle. When you're done adding items. Go to the Shopping Cart Tab and you'll see 2 different Shipping Groups (carts) ready for checkout. Enter the appropriate shipping address for each group. Press calculate shipping after all addresses have been entered. This will activate the Checkout Buttons.

Shipping Groups can also be used to organize items into logical groups. Maybe you have muliptle, different vehicles to purchase items for. Maybe you're working on 3 different vehicles for different customers and you'd like to organize the parts for each vehicle into the appropriate groups.

In the Shopping Cart Tab, shipping group labels will apear in the seperate Shopping Carts in the upper left of each cart B C. If you leave the field blank, all items will go into the "Default" group (cart). Meaning all items will be shipping to one location. This doesn't easily allow for Drop-Shipments to multiple customers though (without processing each one through as a completely different order). Shipping Groups are intended to make the checkout process for drop-shipment orders quicker and easier. With a "One Click Checkout" process at the end.

Note: Each Shipping Group must have the address Information completely filled out before the Checkout buttons will be active.

Shopping Portal - Golf Cart Motors, Controllers & Parts

Choose A
Motor Tool

Motors

Controllers

Solenoids
Wire Kits

Cross Ref.

Motor Parts

Total

Choose a Controller Brand

Alltrax


Model:

$ Price

Amps

Features:

• Made in the USA

• Bluetooth feature available as an add-on

• Less affected by Tariffs

• Fully Epoxy Coated

• Focused on efficiency and performance

• Emphasis on long-lasting and durable products

Navitas


Model:

$ Price

Amps

Features:

• Made in China. Assembed & Tested in Canada

• Bluetooth app for fine-tuning included

• Mobile app interface for easy adjustments

• Broad compatibility with various brands

• High efficiency and regenerative braking

• Large emphasis on performance

Do I have a Series or Regen Cart?

How to tell the difference between a Series and a Regen cart.

(5 easy ways to tell the difference - Use at least 3 of 5 to confirm.)

Does the Golf Cart have a Tow/Run switch or Run/Maintenance switch? This would be under the seat. If the cart DOES have this switch, it is a Regen (Regenerative Braking) cart. If there is NOT a switch, then its a Series cart (Exception - Club Car : Regen I Models).

See examples below (Fig. 1.1, Fig. 1.2 & Fig. 1.3).

Fig 1.1

Fig 1.2

Fig 1.3

EZ-GO
Run/Maintenance Switch

Club Car
Tow/Run Switch

Yamaha
Tow/Run Switch

2.	Does the motor have a speed sensor wire protruding from the end head? If the answer is YES, then it is a Regen motor. If there is NO speed sensor lead on the motor, then it is a Series motor. See Fig. 2 below.

Fig. 2

E-Z-GO Regen Motor	Club Car Regen Motor

Exception: Early EZ-GO - DCS (Drive Control System) models
around 1997 are Regen but do NOT have a speed sensor!

3.	What do the motor Field Coil Windings Look Like?
	a.	Regen motors have "shunt" or "round wire" coils, usually with smaller gauge wire (12AWG - 24AWG range). Usuaully, with a large amount of turns (60 to 200+ turns) per field coil.
	b.	Series motors have "flat wire" coils with larger wire sizes. Usually, the wire is rectanular in shape (cross-section). These coils have a much lower number of turns (usually 5 to 15 turns) per field coil. See Fig. 3a & 3b below

Fig. 3a

Fig. 3b

Note:

A Regen cart will normally automatically slow down when you hit approximately 15 MPH going down a hill. This is for safety reasons (as not to over-spin the armature).

Are there 2 smaller diameter (1/4-20 UNC) terminals and 2 larger diameter (5/16-18 UNC) terminals on the motor? Or are all 4 terminal studs on the motor the same size (5/16-18 UNC)?
If there are 2 smaller and 2 larger terminals bolts, its a Regen motor.
If all 4 bolts are the same size, then its a Series motor.
See Fig. 4 below

Fig. 4

5. Series Vehicle Features
a. E-Z-GO Series Cart Features.

				OR
(Except Regen DCS EZ-GO Model, which HAS this handle.)			1st Generation: 1204 or 1205 footprint. Marathon Models mainly. (YR. 1990-1994.5)		2nd Generation: 1206 footprint. TXT Models mainly. (YR. 1994.5 & Up)

b. Club Car Series Cart Features.

			OR
		Black Controller: Throttle (0-5k): 36 Volt (YR. 1990-1994)		Silver Controller: Throttle (5k-0): 48Volt (YR. 1995 & Up)

What Model Regen Cart do I have?

How do I determine the Voltage of a Golf Car

1.	This is quite simple. Just lift up the seat on your golf cart and count the number of water-fill holes on the batteries. Mutiply that number by 2. That number is the voltage of the golf cart. You can also check the charger for a voltage listing. See Fig. 1.a & 1.b below for examples.

Fig. 1.a

Fig. 1.b

3 water-fill holes = 6 Volt battery

4 water-fill holes = 8 Volt Battery

ex. Most EZ-GO Carts will have
6 (6 Volt battries).

6 X 6 Volts = 36 Volts.

ex. Most Club Car carts will have
6 (8 Volt batteries)

6 X 8 Volts = 48 Volts

How to determine the model of your Regen cart.

For EZ-GO Regen carts, you must determine if it is a DCS (Drive Control System) or PDS (Power Drive System) cart. This can be determined by the type of Forward/Reverse switch and controller. Be advised, more often than not, the model type is written right on the cart itself.
See examples (Fig. 1.1 & Fig. 1.2) below.

Fig. 1.1

Fig. 1.2

EZ-GO DCS
Shift Handle &
SX Speed Controller
36V 275A (DCS) 9 Pin

EZ-GO PDS
Rocker Switch &
1206-MX Speed Controller 36V 275A (PDS) Multi Pin

2.	For Club Car Regen carts, you must determine if it is a Regen I, PDPlus / Regen II , IQ/Precedent (NOT I2) or Precedent I2 model. This can be determined by the type of Forward/Reverse switch and/or the type of controller in the cart. See examples below.

Note:

IQ Carts will have a Serial Number on the data plate that begins with the letter "Q".

For DS Model
(YR. 2001.5-2012)
For Precedent Model
(YR. 2004 & Up)

Fig. 2.2
Rocker Switch NO IQ Plug
See Fig. 2.3 & 2.4

Fig. 2.1
Rocker Switch w/ IQ Plug.
& IQ Controller (16 pin)
Club Car IQ cart.

** How to identify an Precedent I2 car
In the last half of 2008, Club Car introduced their new Precedent i2 car. The body is that of the Precedent cart, but the wiring and electronics are different that their previous IQ/Precedent models.
Cosmetically, the Precedent and i2 cart look the same even the wiring harness looks the same. The wire harness interface is still the 16 pin white connector and will plug into both the IQ/Precedent and the Precedent i2 controllers. The wiring in the connector and the throttle are different between the two cars and are not compatible.
The fastest and easiest way to identify the i2 car is by the color of the controller. The IQ/Precedent car uses a BLACK Curtis controller. The i2 car uses a GREY Curtis controller (PN: 103403401).
The location of the controller has changed since the initial release of the i2. The controller could be located in the center console or on the passenger side of the car against the rear battery wall.

Fig. 2.3

Fig. 2.4

Regen I Controller
(PN- 1018537-01 )

Regen II Controller
(PN- 1018879-01)

- And No IQ Plug :
Regen I cart
(YR. 1995.5 - 1997.5)

- And No IQ Plug :
PDPlus or Regen II cart
(YR. 1997.5 - 2001.5)

3.	For Yamaha Regen carts you must determine the "G" number model of the cart. (ex. G19, G22 or GMAX) Please call us if you need help (315) 701 -0635

What Year is My Series Cart?

How do I determine the Voltage of a Golf Car

1.	This is quite simple. Just lift up the seat on your golf cart and count the number of water-fill holes on the batteries. Mutiply that number by 2. That number is the voltage of the golf cart. You can also check the charger for a voltage listing. See Fig. 1.a & 1.b below for examples.

Fig. 1.a

Fig. 1.b

3 water-fill holes = 6 Volt battery

4 water-fill holes = 8 Volt Battery

ex. Most EZ-GO Carts will have
6 (6 Volt battries).

6 X 6 Volts = 36 Volts.

ex. Most Club Car carts will have
6 (8 Volt batteries)

6 X 8 Volts = 48 Volts

How do I determine theYear of a Golf Car

1. What year is my E-Z-GO?

TXT 1996 - Present	Medalist 1994 - 1995	Marathon 1988 - 1994

1a. Where is the Serial Number located on my E-Z-GO?

Medalist & TXT Models (1994 to Present)

The manufacturers number and serial number for these E-Z-GO golf cart models can be found on a plate in the passenger side glove box. The manufacturers number DOES reflect the model year. This number will usually be: One letter followed by 3 to 4 numbers. Theses numbers will include the last 2 digits of the model year. The order of these numbers has changed over the years. The serial number is a 6 or 7 digit number that does NOT indicate the model year.

Marathon Models (1976 to 1993)

The manufacturers number and serial number for these E-Z-GO golf cart models can be found on a plate under the passenger side glove box. The manufacturers number DOES reflect the model year. This number will usually be: One letter followed by 3 to 4 numbers. Theses numbers will include the last 2 digits of the model year. The order of these numbers has changed over the years. The serial number is a 6 or 7 digit number that does NOT indicate the model year.

2. What year is my Club Car?

1982 - 2000½	2000½ - Present

2a. Where is the Serial Number located on my Club Car?

From 1981 through Present, Club Car positions the serial number under the glove box on the passenger side of the golf cart. The first 2 numerical characters indicate the last 2 digits of the year of manufacture. Golf carts prior to 1981, the serial number can be found on the vehicle frame. Lift the seat and locate the aluminum "I-beam" frame section (closest to the batteries). Note: If this serial number has been removed, you can confirm if its between 1975 & 1980 if there are 2 brake pedals and 1 accelerator pedal.

3. What year is my Yamaha?

G1	G2 & G9	G14, G16, G19 & G20

Note:

For Yamaha vehicles use the attached chart to figure out the year of the cart. The year can be determined by the serial number of the vehicle.

3a Where is the Serial Number located on my Yamaha?

•	For G1 model carts, the serial number can be found under the rear bumper stamped into the square cross member of the frame.
•	For early G2 model carts, the serial number can be found under the rear bumper stamped into the square cross memeber of the frame. For G2 models made between 1988 and 1990, the serial number can be found under the seat where the floor board meets the motor compartment.
•	For G9 models, the serial number can be found under the seat where the floor board meets the motor compartment.
•	For modles G14, G16, G19 & G20, the serial number can be found running vertically just under the glove box on the far left (drivers side) of the vehicle.

36 or 48 Volts?

How do I determine the Voltage of a Golf Car

1.	This is quite simple. Just lift up the seat on your golf cart and count the number of water-fill holes on the batteries. Mutiply that number by 2. That number is the voltage of the golf cart. You can also check the charger for a voltage listing. See Fig. 1.a & 1.b below for examples.

Fig. 1.a

Fig. 1.b

3 water-fill holes = 6 Volt battery

4 water-fill holes = 8 Volt Battery

ex. Most EZ-GO Carts will have
6 (6 Volt battries).

6 X 6 Volts = 36 Volts.

ex. Most Club Car carts will have
6 (8 Volt batteries)

6 X 8 Volts = 48 Volts

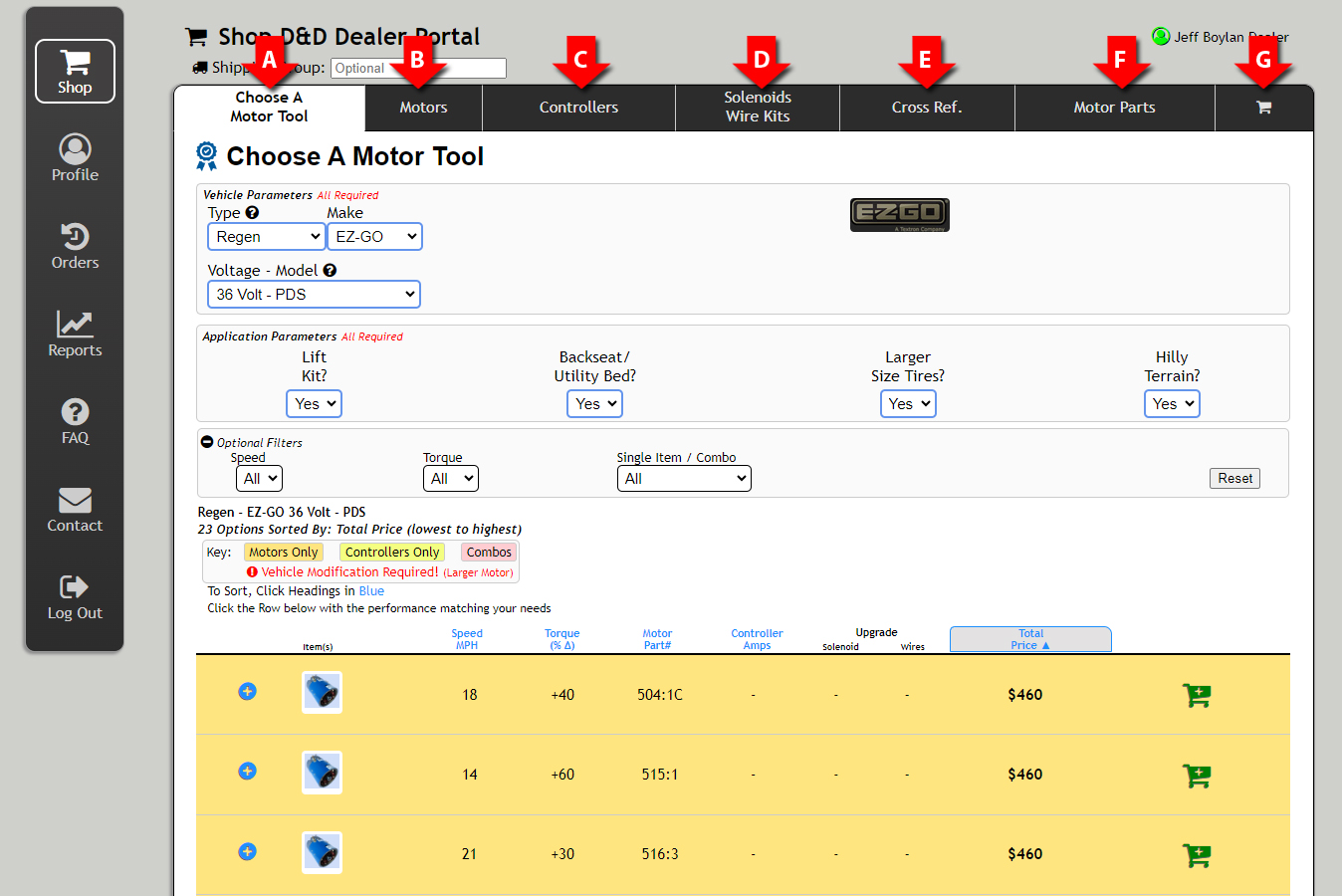

Use Our Choose A Motor Tool - Get a 1 Year Warranty! CMT Approved

Vehicle Parameters All Required
Type	Make

Get the Right Motor / Controller !

The number 1 reason for a return?
The wrong motor was purchased for the application.
Choosing the wrong motor could lead to grave injury or death!
Avoid liability by getting Right motor that's safe in your application.
Get the best performance and right fit for your needs.

Reset

Filters

Power Type
DC		AC

Vehicle Make

Club Car

EZ GO & Yamaha

Vehicle Type

Regen

Series

Performance
All	Hi-Speed	Hi-Torque	Hi-Speed & Torque

DC Motors - Golf Cart Product Line

Club Car (10 tooth female spline)

Top

Part Number

Speed

Torque

Weight

Price

Qty

Series Motors (48 Volts @ 225 Amp Stock Controller)

170-001-0002
For: Club Car

13 | 16

+ 20 %

7.1 | 10.0

50 lbs

$ 700.00

170-002-0002
For: Club Car

15 | 18

+ 10 %

7.0 | 10.1

50 lbs

$ 700.00

170-003-0002
For: Club Car

18 | 21

-10 %

7.0 | 10.6

50 lbs

$ 700.00

170-004-0002A
For: Club Car

13 | 15

+ 60 %

6.7 | 9.9

62 lbs

$ 850.00

170-007-0002
For: Club Car

21 | 25

-15 %

9.2 | 11.5

50 lbs

$ 700.00

170-010-0005
For: Club Car

16 | 19

+ 50 %

7.2 | 9.7

57 lbs

$ 825.00

170-011-0002
For: Club Car

21 | 24

-10 %

7.9 | 9.8

50 lbs

$ 700.00

170-012-0002
For: Club Car

-20 %

8.0

50 lbs

$ 700.00

170-013-0002
For: Club Car

16 | 19

+ 40 %

7.4 | 10.8

62 lbs

$ 850.00

170-016-0002
For: Club Car

20 | 23

+ 20 %

7.4 | 10.2

57 lbs

$ 825.00

Regen Motors (48 Volts @ 300 Amp Stock Controller)

Top

170-501-0003
For: Club Car

0 %

12.3

50 lbs

$ 700.00

170-502-0002
For: Club Car

+ 60 %

12.1

62 lbs

$ 850.00

170-504-0002
For: Club Car

+ 40 %

13.2

57 lbs

$ 825.00

170-505-0002
For: Club Car

+ 10 %

12.2

50 lbs

$ 700.00

170-506-0002
For: Club Car

-10 %

13.3

50 lbs

$ 700.00

170-507-0002
For: Club Car

+ 20 %

13.3

62 lbs

$ 850.00

170-514-0002A
For: Club Car

+ 100 %

12.0

72 lbs

$ 900.00

170-515-0002
For: Club Car

+ 60 %

12.7

57 lbs

$ 825.00

170-516-0001
For: Club Car

+ 30 %

13.3

57 lbs

$ 825.00

170-520-0002
For: Club Car

+ 80 %

13.3

72 lbs

$ 900.00

*** Vehicle performance specs are compared to the standard factory performance. Several factors can effect the performance. Some are battery conditions; tire size, tread type and air pressure; and varying environmental conditions. Standard factory speeds normally run about 14 MPH!!! All vehicle speeds noted are calculated on flat ground. Adding Larger tires normally adds between 2-3 MPH. If you are unsure of how to use the above chart, please call (315) 701-0635. If you do not see the performance you require, please call. We often are capable of making non-standard motors through our engineering department.

EZ-GO & Yamaha (19 tooth female spline)

Top

Part Number

Speed

Torque

Weight

Price

Qty

Series Motors (36 Volts @ 275 Amp Stock Controller)

170-001-0001
For: EZ-GO,Yamaha

13 | 16

+ 20 %

8.7 | 12.0

50 lbs

$ 700.00

170-002-0001
For: EZ-GO,Yamaha

15 | 18

+ 10 %

8.3 | 11.7

50 lbs

$ 700.00

170-003-0001
For: EZ-GO,Yamaha

18 | 21

-10 %

7.7 | 11.3

50 lbs

$ 700.00

170-004-0001
For: EZ-GO

12 | 15

+ 60 %

7.6 | 11.8

62 lbs

$ 850.00

170-006-0001
For: EZ-GO,Yamaha

21 | 24

-15 %

8.6 | 11.3

50 lbs

$ 700.00

170-008-0001
For: EZ-GO,Yamaha

21 | 24

-15 %

8.6 | 11.3

50 lbs

$ 740.00

170-010-0002
For: EZ-GO,Yamaha

16 | 19

+ 50 %

8.0 | 10.3

57 lbs

$ 825.00

170-013-0001
For: EZ-GO

16 | 19

+ 40 %

8.8 | 12.4

62 lbs

$ 850.00

170-016-0001
For: EZ-GO,Yamaha

20 | 23

+ 20 %

9.0 | 11.7

57 lbs

$ 825.00

Regen Motors (36 Volts @ 300 Amp Stock Controller)

Top

170-500-0001
For: EZ-GO

18 | 21

-5 %

8.6 | 13.0

50 lbs

$ 700.00

170-501-0001
For: EZ-GO,Yamaha

16 | 19

0 %

8.8 | 12.3

50 lbs

$ 700.00

170-502-0001
For: EZ-GO,Yamaha

12 | 15

+ 60 %

8.3 | 12.1

62 lbs

$ 850.00

170-504-0001C
For: EZ-GO,Yamaha

18 | 21

+ 40 %

9.1 | 13.2

57 lbs

$ 825.00

170-505-0001
For: EZ-GO,Yamaha

14 | 17

+ 10 %

9.0 | 12.2

50 lbs

$ 700.00

170-506-0001
For: EZ-GO,Yamaha

21 | 24

-10 %

9.5 | 13.3

50 lbs

$ 700.00

170-507-0001
For: EZ-GO,Yamaha

18 | 21

+ 20 %

8.8 | 13.3

62 lbs

$ 850.00

170-514-0001C
For: EZ-GO,Yamaha

10 | 13

+ 100 %

8.7 | 12.0

72 lbs

$ 900.00

170-515-0001
For: EZ-GO,Yamaha

14 | 17

+ 60 %

9.2 | 12.7

57 lbs

$ 825.00

170-516-0003
For: EZ-GO,Yamaha

21 | 24

+ 30 %

9.3 | 13.2

57 lbs

$ 825.00

170-520-0001
For: EZ-GO,Yamaha

16 | 19

+ 80 %

9.4 | 13.3

72 lbs

$ 900.00

*** Vehicle performance specs are compared to the standard factory performance. Several factors can effect the performance. Some are battery conditions; tire size, tread type and air pressure; and varying environmental conditions. Standard factory speeds normally run about 12 MPH!!! All vehicle speeds noted are calculated on flat ground. Adding Larger tires normally adds between 2-3 MPH. If you are unsure of how to use the above chart, please call (315) 701-0635. If you do not see the performance you require, please call. We often are capable of making non-standard motors through our engineering department.

AC Content Coming Soon

Reset

Filters

Power Type
DC		AC

Vehicle Make

Club Car

EZ GO

Yamaha

Vehicle Type

Regen

Series

Brand

Alltrax

Navitas

DC Controllers


Club Car Regen
	Part Number	Amps	Torque	Turbo	Weight	Price	Qty
1	XCT - 300 - IQ For: (Precedent) 4x12V Batteries	300	+ 5 %		8 lbs	$ 575
2	XCT - 300 - IQ For: IQ/Precedent (IQ) 6x8V Batteries	300	+ 5 %		8 lbs	$ 575
3	XCT - 300 - PDPlus For: Regen II or PDPlus	300	+ 5 %		8 lbs	$ 575
4	XCT - 400 - IQ For: (Precedent) 4x12V Batteries	400	+ 20 %		8 lbs	$ 630
5	XCT - 400 - IQ For: IQ/Precedent (IQ) 6x8V Batteries	400	+ 20 %		8 lbs	$ 630
6	XCT - 400 - PDPlus For: Regen II or PDPlus	400	+ 20 %		8 lbs	$ 630
7	XCT - 500 - IQ For: (Precedent) 4x12V Batteries	500	+ 30 %		8 lbs	$ 743
8	XCT - 500 - IQ For: IQ/Precedent (IQ) 6x8V Batteries	500	+ 30 %		8 lbs	$ 743
9	XCT - 500 - PDPlus For: Regen II or PDPlus	500	+ 30 %		8 lbs	$ 743
EZ-GO Regen
	Part Number	Amps	Torque	Turbo	Weight	Price	Qty
1	XCT - 300 - DCS For: DCS	300	+ 5 %		8 lbs	$ 575
2	XCT - 300 - PDS For: PDS	300	+ 5 %		8 lbs	$ 575
3	XCT - 300 - TXT 48 For: Factory (TXT-48V)	300	+ 5 %		8 lbs	$ 575
4	XCT - 400 - DCS For: DCS	400	+ 20 %		8 lbs	$ 630
5	XCT - 400 - PDS For: PDS	400	+ 20 %		8 lbs	$ 630
6	XCT - 400 -TXT48 For: Factory (TXT-48V)	400	+ 20 %		8 lbs	$ 630
7	XCT - 500 - DCS For: DCS	500	+ 30 %		8 lbs	$ 743
8	XCT - 500 - PDS For: PDS	500	+ 30 %		8 lbs	$ 743
9	XCT - 500 - TXT48 For: Factory (TXT-48V)	500	+ 30 %		8 lbs	$ 743
Yamaha Regen
	Part Number	Amps	Torque	Turbo	Weight	Price	Qty
1	XCT - 300 - G19 For: G19	300	+ 5 %		8 lbs	$ 575
2	XCT - 300 - G22 For: G22	300	+ 5 %		8 lbs	$ 575
3	XCT - 300 - YDRE For: Drive - G29	300	+ 5 %		8 lbs	$ 575
4	XCT - 400 - G19 For: G19	400	+ 20 %		8 lbs	$ 630
5	XCT - 400 - G22 For: G22	400	+ 20 %		8 lbs	$ 630
6	XCT - 400 - YDRE For: Drive - G29	400	+ 20 %		8 lbs	$ 630
7	XCT - 500 - G19 For: G19	500	+ 30 %		8 lbs	$ 743
8	XCT - 500 - G22 For: G22	500	+ 30 %		8 lbs	$ 743
9	XCT - 500 - YDRE For: Drive - G29	500	+ 30 %		8 lbs	$ 743


Club Car Series
	Part Number	Amps	Torque	Throttle	Weight	Price	Qty
1	SR - 300 Amp - 12 to 48 V For: Club Car	300	+ 5 %		8 lbs	$ 549
2	SR - 400 Amp - 12 to 48 V For: Club Car	400	+ 20 %		8 lbs	$ 615
3	SR - 500 Amp - 12 to 48 V For: Club Car	500	+ 30 %		8 lbs	$ 699
EZ-GO Series
	Part Number	Amps	Torque	Throttle	Weight	Price	Qty
1	SR - 300 Amp - 12 to 48 V For: EZ-GO	300	+ 5 %		8 lbs	$ 549
2	SR - 400 Amp - 12 to 48 V For: EZ-GO	400	+ 20 %		8 lbs	$ 615
3	SR - 500 Amp - 12 to 48 V For: EZ-GO	500	+ 30 %		8 lbs	$ 699
Yamaha Series
	Part Number	Amps	Torque	Throttle	Weight	Price	Qty
1	SR - 300 Amp - 12 to 48 V For: Yamaha	300	+ 5 %		8 lbs	$ 549
2	SR - 400 Amp - 12 to 48 V For: Yamaha	400	+ 20 %		8 lbs	$ 615
3	SR - 500 Amp - 12 to 48 V For: Yamaha	500	+ 30 %		8 lbs	$ 699

DC Controllers

Club Car Regen
	Part Number	Amps	Torque	Weight	Price	Qty
1	440N-IQ For: Club Car IQ Carts	440	+ 25 %	8 lbs	$ 669.00
2	600N-IQ For: Club Car IQ Carts	600	+ 35 %	8 lbs	$ 769.00
EZ GO Regen
	Part Number	Amps	Torque	Weight	Price	Qty
1	440N-DCS For: EZ GO DCS Carts	440	+ 25 %	8 lbs	$ 669.00
2	440N-PDS For: EZ GO PDS Carts	440	+ 25 %	8 lbs	$ 669.00
3	440N-TXT48 For: EZ GO TXT - 48V Carts	440	+ 25 %	8 lbs	$ 669.00
4	600N-DCS For: EZ GO DCS Carts	600	+ 35 %	8 lbs	$ 769.00
5	600N-PDS For: EZ GO PDS Carts	600	+ 35 %	8 lbs	$ 769.00
6	600N-TXT48 For: EZ GO TXT - 48V Carts	600	+ 35 %	8 lbs	$ 769.00
Yamaha Regen
	Part Number	Amps	Torque	Weight	Price	Qty
1	440N-G19 For: Yamaha G19 Carts	440	+ 25 %	8 lbs	$ 669.00
2	440N-G22 For: Yamaha G22 Carts	440	+ 25 %	8 lbs	$ 669.00
3	440N-G29 For: Yamaha G29 Carts	440	+ 25 %	8 lbs	$ 669.00
4	600N-G19 For: Yamaha G19 Carts	600	+ 35 %	8 lbs	$ 769.00
5	600N-G22 For: Yamaha G22 Carts	600	+ 35 %	8 lbs	$ 769.00
6	600N-G29 For: Yamaha G29 Carts	600	+ 35 %	8 lbs	$ 769.00

Club Car Series
	Part Number	Amps	Torque	Model (Volts - Year or Throttle)	Weight	Price	Qty
1	440N For: Club Car Series Carts	440	+ 25 %		8 lbs	$ 669.00
2	600N For: Club Car Series Carts	600	+ 35 %		8 lbs	$ 769.00
EZ GO Series
	Part Number	Amps	Torque	Model (Volts - Year or Throttle)	Weight	Price	Qty
1	440N For: EZ GO Series Carts	440	+ 25 %		8 lbs	$ 669.00
2	600N For: EZ GO Series Carts	600	+ 35 %		8 lbs	$ 769.00
Yamaha Series
	Part Number	Amps	Torque	Model (Volts - Year or Throttle)	Weight	Price	Qty
1	440N For: Yamaha Series Carts	440	+ 25 %		8 lbs	$ 669.00
2	600N For: Yamaha Series Carts	600	+ 35 %		8 lbs	$ 769.00

AC Controllers

EZ GO
	Part Number	Amps	Torque	Model (Replaces)	Weight	Price	Qty
1	650 - AC -RXV - Cur - TS For: 650 Amp Alltrax AC Controller for EZ-GO RXV-Curtis Replacement	650	+ 45 %	RXV-Curtis Replacement	8 lbs	$ 839
2	650 - AC -RXV - Dan - TS For: 650 Amp Alltrax AC Controller for EZ-GO RXV-Danaher Replacement	650	+ 45 %	RXV-Danaher Replacement	8 lbs	$ 839

Yamaha
	Part Number	Amps	Torque	Model (Replaces)	Weight	Price	Qty
3	650 - AC - YAM - Drive 2 - TS For: 650 Amp Alltrax AC Controller for Yamaha - Drive 2 Replacement	650	+ 45 %	Drive 2 Replacement	8 lbs	$ 839

AC Controllers

EZ GO
	Part Number	Amps	Torque	Model (Replaces)	Weight	Price	Qty
1	440 - AC -RXV - Cur - TS For: 440 Amp Navitas AC Controller for EZ-GO RXV-Curtis Replacement	440	+ 25 %	RXV-Curtis Replacement	8 lbs	$ 850
2	440 - AC -RXV - Dan - TS For: 440 Amp Navitas AC Controller for EZ-GO RXV-Danaher Replacement	440	+ 25 %	RXV-Danaher Replacement	8 lbs	$ 850
3	600 - AC -RXV - Cur - TS For: 600 Amp Navitas AC Controller for EZ-GO RXV-Curtis Replacement	600	+ 40 %	RXV-Curtis Replacement	8 lbs	$ 899
4	600 - AC -RXV - Dan - TS For: 600 Amp Navitas AC Controller for EZ-GO RXV-Danaher Replacement	600	+ 40 %	RXV-Danaher Replacement	8 lbs	$ 899

Yamaha
	Part Number	Amps	Torque	Model (Replaces)	Weight	Price	Qty
5	440 - AC - YAM - Drive 2 - TS For: 440 Amp Navitas AC Controller for Yamaha - Drive 2 Replacement	440	+ 25 %	Drive 2 Replacement	8 lbs	$ 850
6	600 - AC - YAM - Drive 2 - TS For: 600 Amp Navitas AC Controller for Yamaha - Drive 2 Replacement	600	+ 40 %	Drive 2 Replacement	8 lbs	$ 899

Solenoids

	Part Number	Voltage	Weight	Price	Qty
1	Solenoid-36/48V- up to 650 AMP	36	4 lbs	$ 173
2	Solenoid-36/48V- up to 650 AMP	48	4 lbs	$ 173

Heavy Duty Wire Kits

Wire Kits for Regen Vehicles
	Part Number	Wire Size	Weight	Price	Qty
1	Wire Kit : EZGO - DCS/PDS For: EZ-GO 36 Volt - DCS, EZ-GO 36Volt - PDS, EZ-GO 48 Volt - (Factory - TXT), EZ-GO 48 Volt - (Converted)	4 AWG	4 lbs	$ 193
2	Wire Kit : Club Car - IQ For: Club Car 48 Volt - IQ/Precedent (6x8V batteries)	4 AWG	4 lbs	$ 193
3	Wire Kit : Club Car -Precedent For: Club Car 48 Volt - Precedent (4x12V batteries)	4 AWG	4 lbs	$ 193
4	Wire Kit : Yamaha - G19/G22 For: Yamaha 48 Volt - G19, Yamaha 48 Volt - G22	4 AWG	4 lbs	$ 193
5	Wire Kit : Yamaha - G29 For: Yamaha Drive - G29	4 AWG	4 lbs	$ 204

Wire Kits for Series Vehicles
	Part Number	Wire Size	Weight	Price	Qty
1	Wire Kit:Club Car-Series 95&up For: Club Car 48 Volt - 1996 and Later, Club Car 48 Volt - 1995	4 AWG	4 lbs	$ 204
2	Wire Kit : EZGO-Series 96 & UP For: EZ-GO 36 Volt - 1996 and Later	4 AWG	4 lbs	$ 193

Motor & Controller Cross Reference

Golf Cart Motor Parts

Brush Box
	Part Number	Description	Wt	Price	Qty
	bbox170-0001	Brush Box	1	$ 40.00

Bearing
	Part Number	Description	Wt	Price	Qty
	bear-0205	Bearing (205)	1	$ 10.00

Brush Assemblies
	Part Number	Description	Wt	Price	Qty
	brha-1000	Brush Assembly (brsh-1000, hfas:1003)	1	$ 16.00
	brha-3000	Brush Assembly (brsh-3000, hfas:1003)	1	$ 16.00

Commutator Endhead Assembly
	Part Number	Description	Wt	Price	Qty
	ceha170-0001	Commutator Endhead Assembly (Curved Brush)	2	$ 156.00

Controller Accessories
	Part Number	Description	Wt	Price	Qty

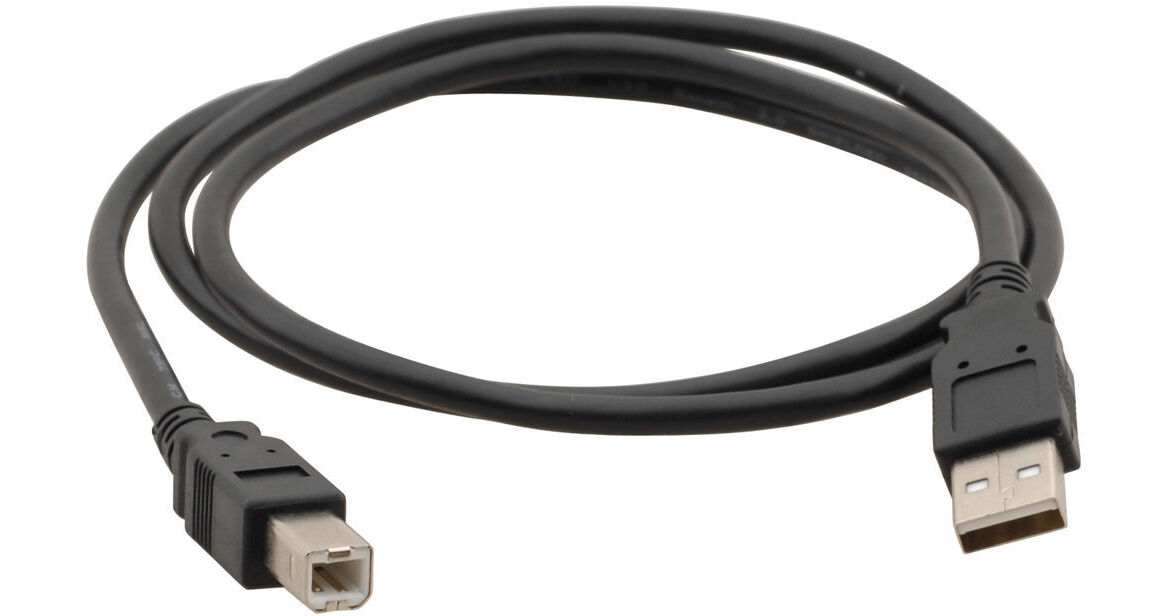

	Controller-USB	USB A-B Cable for Alltrax Controller Programming	0.2	$ 20.00

Drive Endhead Assembly
	Part Number	Description	Wt	Price	Qty
	deha170-0001	Drive Endhead Asembly (mining)	2	$ 75.00

Diode
	Part Number	Description	Wt	Price	Qty
	Diode - for 400 Amp Solenoid	Diode - for 400 Amp Solenoid	1	$ 5.00

Hex Nuts (Brass)
	Part Number	Description	Wt	Price	Qty
	hnut-1000	Nut : Hex Head (1/4")	0.2	$ 0.90
	hnut-1001	Nut : Hex Head (5/16")	0.2	$ 0.90
	hnut-1002	Nut : Hex Head (3/8")	0.2	$ 0.90

Hole Plug
	Part Number	Description	Wt	Price	Qty
	hplg-0001	Hole Plug	0.2	$ 5.00

Terminal Stud Insulators
	Part Number	Description	Wt	Price	Qty
	ints-1000	Insulation : Terminal Stud (1/4")	0.2	$ 1.50
	ints-1001	Insulation : Terminal Stud (5/16")	0.2	$ 1.50
	ints-1002	Insulation : Terminal Stud (3/8")	0.2	$ 1.50

Washers: Insulating
	Part Number	Description	Wt	Price	Qty
	inws-1000	Insulation : Washer (1/4")	0.2	$ 1.50
	inws-1001	Insulation : Washer (5/16")	0.2	$ 1.50
	inws-1002	Insulation : Washer (3/8")	0.2	$ 1.50

Magnets: Speed Sensor
	Part Number	Description	Wt	Price	Qty
	mgnt-1004	Magnet : Speed Sensor - 4 pole	0.2	$ 5.00
	mgnt-1008	Magnet : Speed Sensor - 8 pole	0.2	$ 5.00

Resistors
	Part Number	Description	Wt	Price	Qty
	Resistor, Precharge - 36V	Resistor, Precharge - (KIT-PCR-250)	0.2	$ 6.00
	Resistor, Precharge - 48V	Resistor, Precharge - (KIT-PCR-470)	0.2	$ 6.00

Speed Sensor Kits
	Part Number	Description	Wt	Price	Qty
	spdk-0001	Speed Sensor Kit w 8 Pole Magnet	0.5	$ 50.00
	spdk-0001 - 4 pole	Speed Sensor Kit w 4 Pole Magnet	0.5	$ 50.00
	spdk-0002	Speed Sensor Kit (Deutch Connector) w 8 Pole Magnet	0.5	$ 50.00
	spdk-0002 - 4 pole	Speed Sensor Kit (Deutch Connector) w 4 Pole Magnet	0.5	$ 50.00

Speed Sensors
	Part Number	Description	Wt	Price	Qty
	spds-0001	Speed Sensor	0.5	$ 40.00
	spds-0002	Speed Sensor with Deutsch Connector	0.5	$ 40.00

Discount Code

Cart is Empty!

Account Profile

Login
Username:
Password:

Default Shipping
Contact:	Email:
Street:	Apt, Suite, Bldg:
City:	State:	Zip:

Retrieving Default Billing Info ...

Checkout Settings
Terms:	Visa/Mastr
Discount:	Standard Dealer Pricing

Order History & Pending Orders

Reports & Rewards

Reports Coming Soon!

FAQ & Help

Frequently Asked Questions
Login and Account Information
1.	How do I change my login information?
	1. How do I change my login information? X To change your Username and or Password click on the "Profile" button on the left-side menu.Â Edit the Username and Password fields as you see fit. Then click the "Save" button.
Orders
2.	How do I create an Order?
	2. How do I create an Order? X Click on the "Shop" button on the left-side menu.Â Across the top of this section you'll see different "Tabs". These tabs are labeled with the different items we sell. Click the appropriate tab for the items you're looking for. And begin adding items to your cart by clicking the Green Shopping Cart icon with the plus symbol.Â Shopping Tabs: A - "Choose A Motor Tool". This tool allows you to answers a few simple questions about the vehicle you're purchasing for and the particular application required. Narrowing in on the available options and Combo packages. Filters can be used to narrow down the selection based on different performance criteria. This ensures the proper motor and or controller and accessories are chosen.Â This also ensures that you'll be covered from liability. If you don't use this tool as per specified in our dealer agreement, you assume all risks and liabilities. And D&D will not warranty motors and controllers that were not approved through this tool.Â B - Motors. This Tab is where you'll find our Golf Cart Motor Product Line. Grouped by Vehicle Type. If you know the part number and or performance. And want to skip the Choose a Motor Tool and add motors directly. Go here. Note the liability now shift to the dealer. And the items may not be warranteed if its shown to be used in non approved applications. C - Controllers. This is where you'll find our Golf Cart Controller Product offerings.
3.	Is it possible to drop-ship to multiple customers?
	3. Is it possible to drop-ship to multiple customers? X Yes. You can place multiple orders and fill out all the information accordingly. Or you can use Shipping Groups A Optional. Shipping Groups are mostly used for Drop-Shipments. Enter the Name or some identifying label for the shipment into the Shipping Group field. This will keep all items together for that group. This feature allows you to enter orders containing multiple drop-shipments. Each group gets procesed as a seperate charge and processed as an individual order at checkout. Multiple drop shipments with 1 Single Checkout click! For example, Enter the Name of a customer (ie. Bob Smith) in the Shipping group field. Now add items to your cart that you intend to have shipped to Bob Smith. And you also have another customer (ie. Cathy Jones) to buy different items for. Now clear the Shipping Group field and enter Cathy Jones. And add all of the items for their vehicle. When you're done adding items. Go to the Shopping Cart Tab and you'll see 2 different Shipping Groups (carts) ready for checkout. Enter the appropriate shipping address for each group. Press calculate shipping after all addresses have been entered. This will activate the Checkout Buttons. Shipping Groups can also be used to organize items into logical groups. Maybe you have muliptle, different vehicles to purchase items for. Maybe you're working on 3 different vehicles for different customers and you'd like to organize the parts for each vehicle into the appropriate groups. In the Shopping Cart Tab, shipping group labels will apear in the seperate Shopping Carts in the upper left of each cart B C. If you leave the field blank, all items will go into the "Default" group (cart). Meaning all items will be shipping to one location. This doesn't easily allow for Drop-Shipments to multiple customers though (without processing each one through as a completely different order). Shipping Groups are intended to make the checkout process for drop-shipment orders quicker and easier. With a "One Click Checkout" process at the end. Note: Each Shipping Group must have the address Information completely filled out before the Checkout buttons will be active.

Contact D&D

Contact Coming Soon!

D&D Motor Systems, Inc

Market Segments

Golf Carts Autohauler Pump Motors NEV Mining Go Karts All Markets

Content

Frequently Asked Questions Technical Tips Photo Gallery Beginner's Guide to Motors DC vs AC Golf Carts

Quote Request

Replacement Motor Quote Pump Motor Quote Drive Motor Quote

Company

About Us Contact Us

215 Park Ave Syracuse NY 13204Monday - Friday, 8AM - 4PM EST
