| Owner | Francis Deslauriers |
|---|
| Location | Quebec Canada map |
|---|

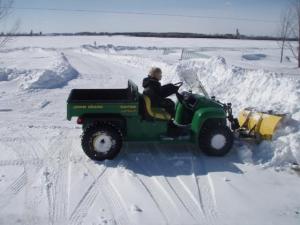

| Vehicle | 2002 John Deere Gator 6x4 |
|---|
| Motor | D&D Motor Systems, Inc. ES84C70 Separately Excited DC |
|---|
| Drivetrain | OEM Chain drive + Transaxle
Motor linked to transaxle with chain |
|---|
| Controller | Alltrax DCX-500
Will change to Navitas ASAP |
|---|
| Batteries | 4 US Battery US 12V XC, 12.00 Volt, Lead-Acid, Flooded
4 batteries for now, will add 4 later |
|---|
| System Voltage | 48 Volts |
|---|
| Charger | Quick Charge SCO4825
48V/25A |
|---|
| DC/DC Converter | Sevcon 4813
Connected to small 12V battery to absorb loads |
|---|
| Top Speed | 15 MPH (24 KPH)
Limited by chain ratio
Vehicle meant to work hard not fast |
|---|
| Acceleration | Strong |
|---|
| Range | Untested yet |
|---|
| Curb Weight | 0
Unknown so far, probably close to 1300lbs |
|---|
| Tires | 215/65r14 Standard winter tires
Converted front hubs to 5 bolt pattern to use 6
identical wheels |
|---|
| Conversion Time | 1 Year part-time during week nights |
|---|
| Conversion Cost | 6000$ + 2000$ for the gator |
|---|
| Additional Features | -Custom made pushbar
-Electric 1000lbs dumpbox actuator
-Custom made dumpbox
-Front and rear work lights
-Custom made open cab
-Front and rear hitch for winch
-Custom dash
-Fully custom wiring
|
|---|
|
