| Owner | Simeon Hunter |
|---|
| Location | Kingston- Ontario Canada map |
|---|
| Web/Email | |
|---|

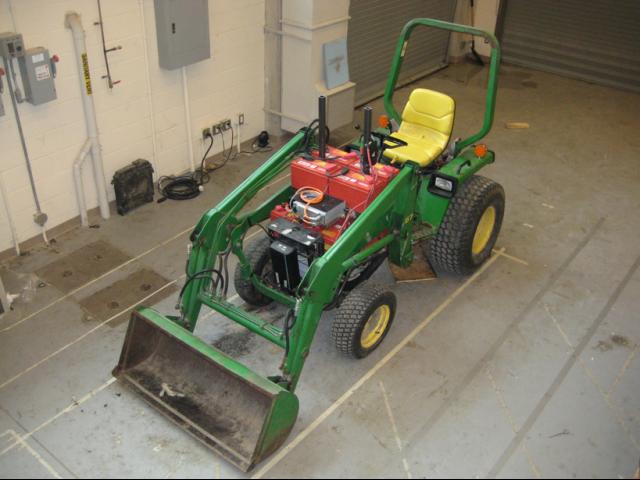

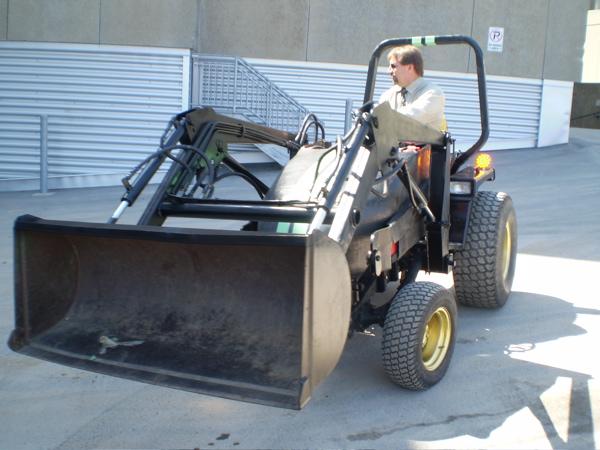

| Vehicle | John Deere 755 donated tractor- and project funding- from Hatch Engineering |
|---|
| Motor | D&D Motor Systems- Inc. ES-31F-16 Series Wound DC
this was designed by D&D to match the diesel engine that
was replaced. it has a rating of 27hp- 45Nm and a max RPM
of 3448. |
|---|
| Drivetrain | original hydrostatic pump - operates all four drive wheels
and all hydraulics |
|---|
| Controller | Curtis 1231C-86 |
|---|
| Batteries | 10 TransCanada DC31-280- 12.00 Volt- Lead-Acid- AGM
rated at 130 Ah |
|---|
| System Voltage | 120 Volts |
|---|
| Charger | Brusa NLG511
3.3 kW - 240 VAC input- programmable |
|---|
| Heater | the warmth of your soul that can only come from victory. |
|---|
| DC/DC Converter | Vicor DC/DC |
|---|
| Instrumentation | eVision DAQ with an Acumen DataBridge serial logger |
|---|
| Top Speed | 30 MPH (48 KPH)
approximate |
|---|
| Acceleration | wed challenge the White Zombie if we had a better top
speed. |
|---|
| Range | 20 Miles (32 Kilometers)
approximate- assuming 90 minutes of runtime- at 20mph |
|---|
| Seating Capacity | technically- one. hypothetically- infinite. |
|---|
| Curb Weight | 2-300 Pounds (1-045 Kilograms)
|
|---|
| Tires | pimpin |
|---|
| Conversion Time | 8 months; university project. |
|---|
| Conversion Cost | ~$13000 |
|---|
| Additional Features | carbon fibre hood- LED floodlamps and flashers- PC powersupply fans to cool battery
bank and hydrostatic fluid radiator- PTO seat killswitch- Heinnenman 250 amp circuit
breaker- automatic break of ignition solenoid when tractor is plugged in (via
microswitch and relay). |
|---|
|
